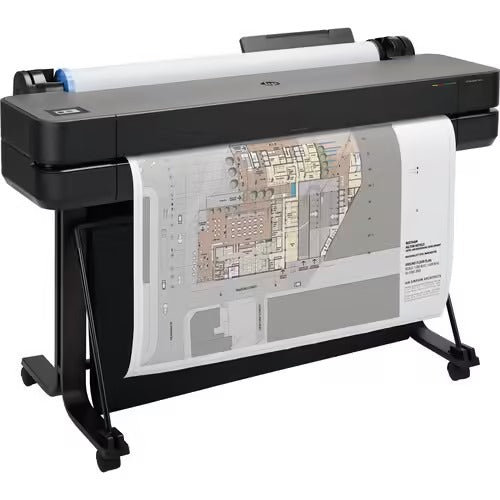

HP DesignJet T630 36-Inch Wireless Plotter Printer with 1-Click Printing.

The HP DesignJet T630 36-Inch Wireless Plotter Printer is the ideal solution for architects, engineers, and designers who need accurate, high-quality large format prints. With 1-Click Printing using HP Click software, you can easily print multiple files in seconds, saving time and boosting productivity.

This single-function plotter delivers up to 2400 × 1200 dpi resolution, producing sharp lines and vibrant colors for CAD drawings, GIS maps, renderings, and posters. It prints A1/D-size sheets in just 30 seconds and supports roll feed and cut sheets up to 36″ wide.

The HP DesignJet T630 features wireless connectivity, Wi-Fi Direct, Ethernet, and USB, letting you manage print jobs effortlessly from the HP Smart App on your computer or mobile device. With an automatic sheet feeder, media bin, and integrated stand, it is both compact and easy to use.

Designed for speed, efficiency, and precision, the HP DesignJet T630 36″ plotter is the perfect large-format printer for modern offices.

HP DesignJet T630 36-Inch Plotter – Specifications

General Information

Model: HP DesignJet T630 (5HB11A)

Printer Type: Single Function – Large Format Plotter (Print Only)

Functions: Print

Print Quality & Performance

Print Resolution: Up to 2400 × 1200 optimized dpi

Line Accuracy: ±0.1%

Minimum Line Width: 0.02 mm (0.0008 in)

Print Speed:

A1/D-size print in ~30 seconds

Up to 76 A1/D prints per hour (Fast Mode)

Media Handling

Maximum Print Width: 36″ (914 mm)

Media Types Supported: Bond and coated paper, technical papers, film, photographic paper, backlit, self-adhesive materials

Roll Feed: Yes

Sheet Feed: Automatic sheet feeder included

Media Thickness: Up to 0.8 mm

Cutter: Automatic horizontal cutter

Media Bin: Included

Connectivity & Software

Interfaces: Wi-Fi 802.11, Wi-Fi Direct, USB 2.0, Gigabit Ethernet

Mobile Printing: HP Smart App (iOS & Android)

Software: HP Click (1-Click Printing), HP Print Preview

Print Languages: HP-GL/2, HP-RTL, CALS G4, JPEG, URF

Memory & Processing

RAM: 1 GB

Processor: High-speed processing for large CAD/GIS files

Ink System

Cartridges: 4 (Cyan, Magenta, Yellow – Dye-based; Black – Pigment)

Ink Types: Dye and Pigment inks for vibrant graphics and sharp lines

Dimensions & Weight

Printer Dimensions (W × D × H): 51.9 × 24 × 36.7 in (1320 × 610 × 932 mm)

Weight: ~76 lb (34.3 kg)

Power & Environment

Power Consumption:

Printing: ~35 W

Ready: ~6 W

Sleep: ~1.5 W

Acoustic Power: 6.0 B(A) (printing)

Certification: ENERGY STAR®, EPEAT registered, carbon neutral certified

In the Box

HP DesignJet T630 36″ Plotter Printer

Stand with media bin

Automatic sheet feeder

Introductory ink cartridges (C, M, Y, K)

Printhead

Spindle

Power cord

Setup poster & user guide
